Aerpro AXTOTY2 Amplifier Retention Interface Suit Toyota Various Vehicles

Provides Handbrake & Reverse Trigger Outputs Which Are Used When Installing Various Aftermarket Audio Visual Headunits!

Amplifier Retention Interface
The AXTOTY2 by Axxess Interface is an amplifier retention interface that allows the factory OEM amplifier to be retained in various Toyota vehicles when upgrading to an aftermarket headunit. The interface retains audio balance and fade functions and provides handbrake and reverse trigger outputs which are used when installing various aftermarket audio visual headunits.

While the interface does include a harness specifically for various Toyota Vehicles, it is not a complete plug and play solution, a number of wires need to be connected between the AXTOTY2 and the aftermarket headunit, it is recommended that wires are soldered for the best connection. This interface is also pre-wired for the AXSWC Steering Wheel Control Interface (AXSWC Sold Separately).

Important Notes:

• Amp Retention Interfaces vary between models, to find the correct part for your vehicle uses the Aerpro Vehicle Selector.
• Prewired AXSWC steering wheel control interface harness (AXSWC Sold Separately).

Features:

• Retains the factory OEM amplifier in various Toyota vehicles when installing an aftermarket headunit
• Retains audio balance and fade functions and has an adjustable input gain
• Provides handbrake and reverse trigger outputs which are used when installing various aftermarket audio visual headunits
• Fitted with a vehicle specific plug, no cutting of wires required in the vehicle
• Hard wire installation between interface harness and aftermarket headunit harness is required
• High Level Speaker Input
• Pre-Wired AXSWC steering wheel control interface harness (AXSWC Sold Separately)
• Micro USB Updatable (Cable Not Included)

Specifications:

• Interface Type: OEM Amp Retention
• Installation Type:
  • Vehicle Connection: Vehicle Specific Plug
  • Aftermarket Headunit Connection Hard Wire (Soldering Recommended)
• Headunit Compatibility: Most Major Brands of Aftermarket Headunits
• AV Headunit Outputs:
  • Reverse Trigger
  • Handbrake
• Inclusions:

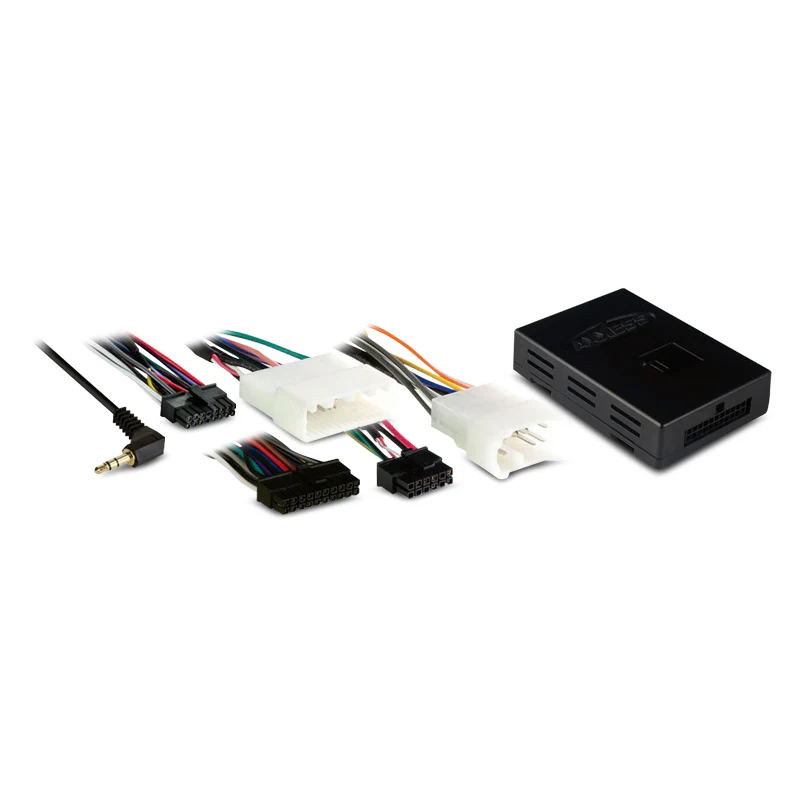

  • AXTOTY2 Interface
  • AXTOTY2 Harness
  • 16 PIN Harness with Stripped Leads
• Vehicle Compatibility: Toyota RAV4 (2013 - 2018)
• Weight: 0.05kg
