Clutch Industries 4TU1672N 4Terrain Ultimate Clutch Kit Suits Holden, Isuzu
Increase the Toque Handling Capability of Your Clutch Direct Upgraded 4x4
Clutch Direct are proud to offer 4Terrain clutch upgrades for your 4x4. Increase the toque handling capability of your Clutch Direct upgraded 4x4. Perfect for tuned and enhanced 4x4's, or even those who just want to push the limits off-road
Patented 4 Terrain Off Road Cover Assembly
4x4 systems need a higher torque capacity while retaining good pedal feel with fine modulation control. These characteristics inevitably increase heat which reduces service life. So the ideal 4x4 clutch system must also have improved heat dissipation. 4Terrain cover assemblies are in themselves high clamp load covers providing increased clamping force as compared to standard product. Also featuring the ER2 grooved cover which increase torque capacity while also increase heat dissipation.
Spheroidal Graphite Castings
Approximately 300% stronger than a standard casting this material (sometimes referred to as an Anti Burst casting) not only increases strength by up to 3 times, it also improves heat dispersion.
Balanced Covers
To insure that the clutch system performs at maximum efficiency and that no unwanted vibration is generated as the cover spins, all 4Terrain cover assemblies undergo a 2 stage balancing process.

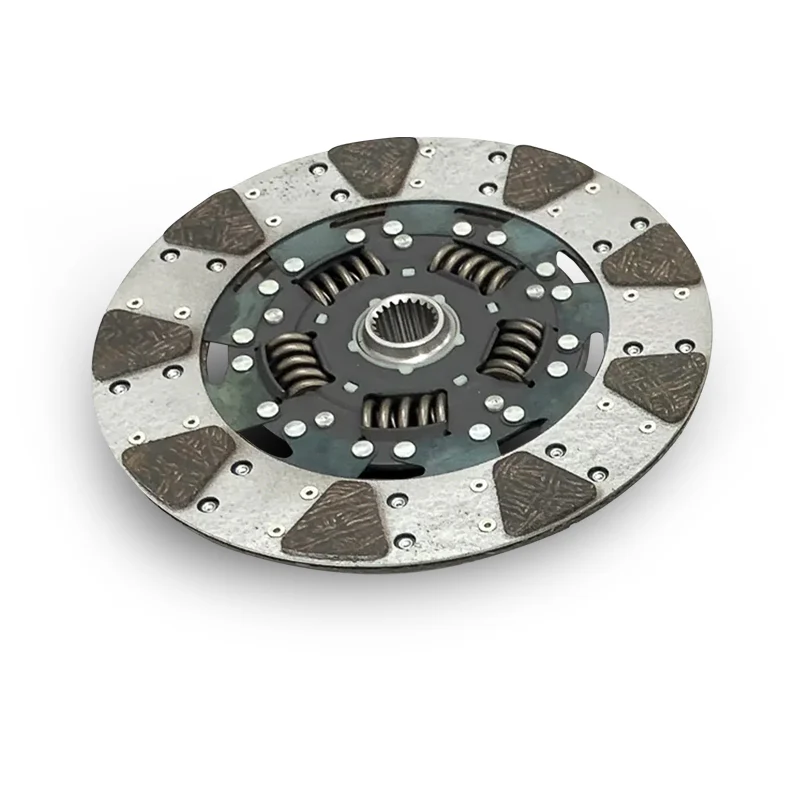

4 Terrain Dual Friction Clutch Plate
4Terrain Ultimate Clutch Kits feature a dual friction clutch plate. Organic material on the flywheel side is replaced with Aramid, the same material used in bulletproof vests, for improved fade resistance and increased torque capacity due to a higher coefficient of friction. 4Terrain Ultimate plates are the ultimate for your 4x4.
Features:
- Engine: 3.0 Ltr 4JJ1-TC
- Series: RC
Specifications:
- Clutch Plate Dimensions: 275 x 24T x 25.5
- Dual Mass Flywheel: Not Included
- Solid Flywheel: Not Included
- Concentric Slave Cylinder: Not Included
- Torque Capacity: Peak: 838Nm, Recommended: 586Nm
- Flywheel Spec: -12.0
- Spigot: RSB504
- Alignment: CAT154
- Length: 46
- Width: 36
- Height: 18

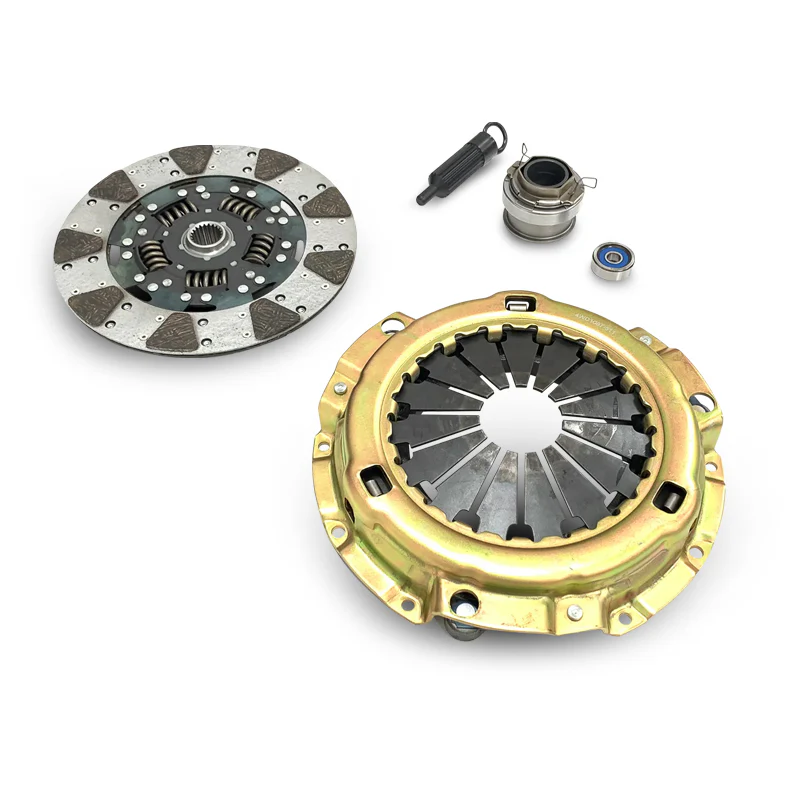

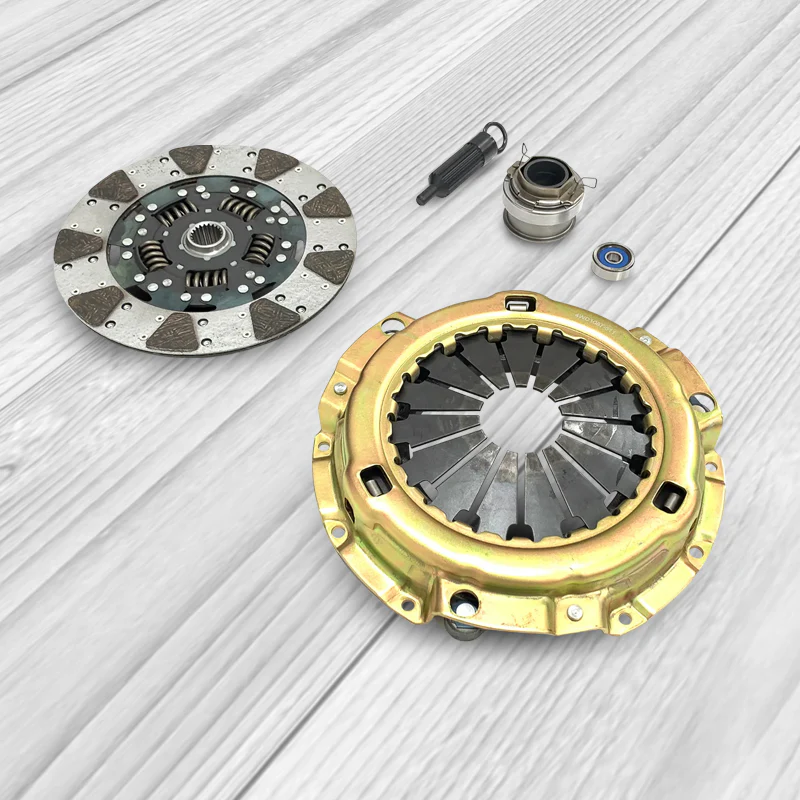

What's In The Box:

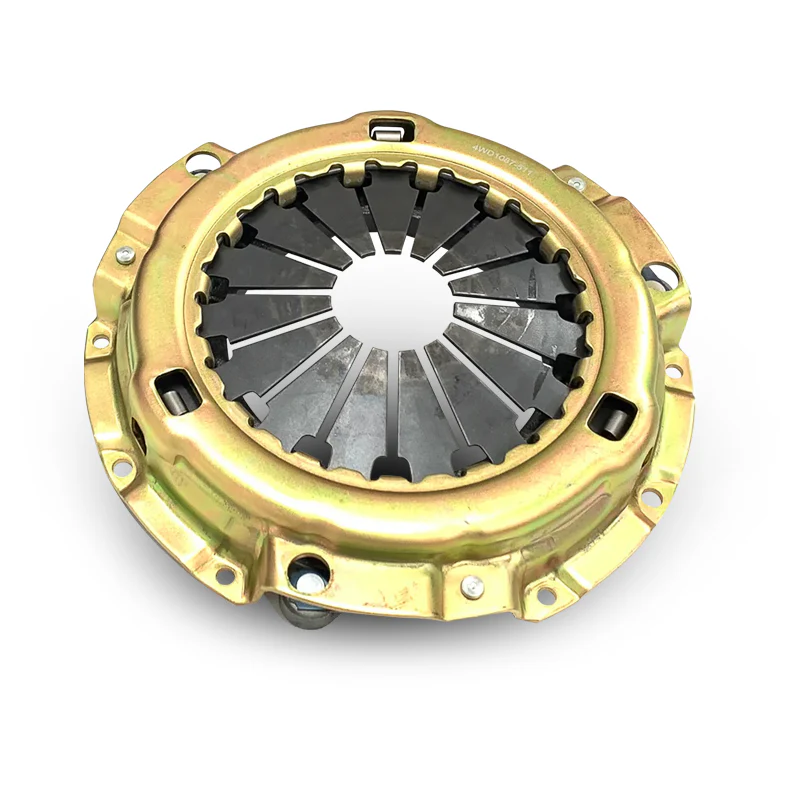

- 4TERRAIN ER2 Heavy Duty Cover Assembly
- 4Terrain Aramide Dual Friction
- High Torque
- Clutch Plate

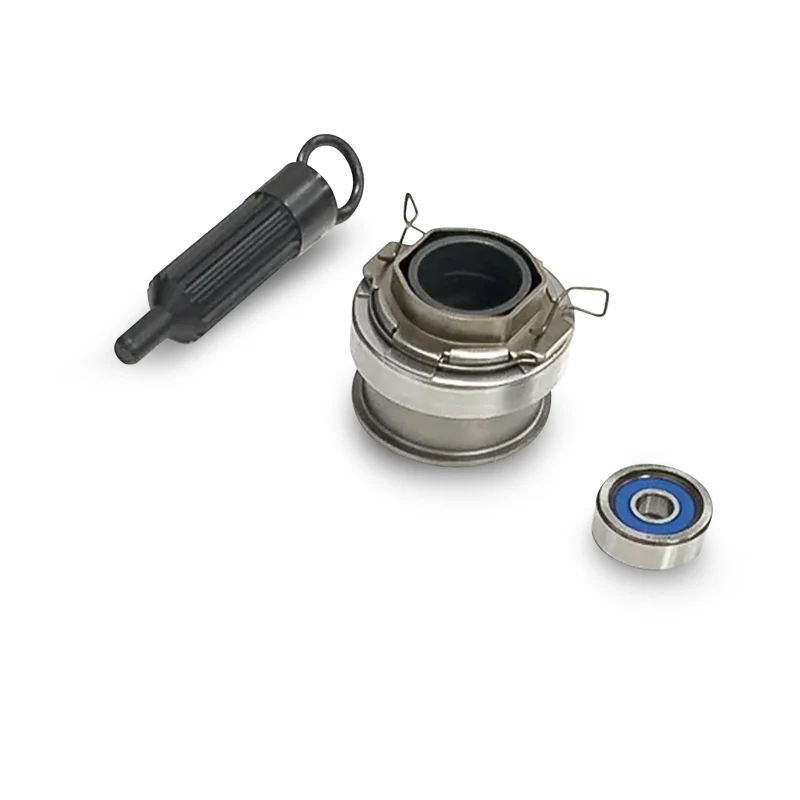

- Release bearing
- Clutch Alignment Tool
- Spigot Bearing
