Helix CONDUCTOR Control Input – Programmable LED Remote Control for MATCH & HELIX with Control Input Port

Take full control of your MATCH & HELIX DSP sound system with the Helix CONDUCTOR Control Input – a programmable LED remote control for MATCH HELIX with control input port, featuring intuitive Bluetooth playback control and seamless integration into your existing vehicle interior.

Designed for car audio enthusiasts who demand precision and simplicity, the Helix CONDUCTOR Control Input is the ultimate programmable LED remote control for MATCH and HELIX DSP amplifiers. Whether you're upgrading your ride's sound system or setting up complex system configurations with multiple playback zones, this control unit puts all the important functions of your DSP sound system fully under control — with just one knob.

Ideal for both simple subwoofer remote needs and complex multi-zone audio environments, the CONDUCTOR lets you manage everything from volume adjustment and signal source selection to setup changes and even optional Bluetooth module control. Imagine having two playback zones with different volumes: music for the front seats and a radio play quietly running in the back — all intuitively controlled at your fingertips.

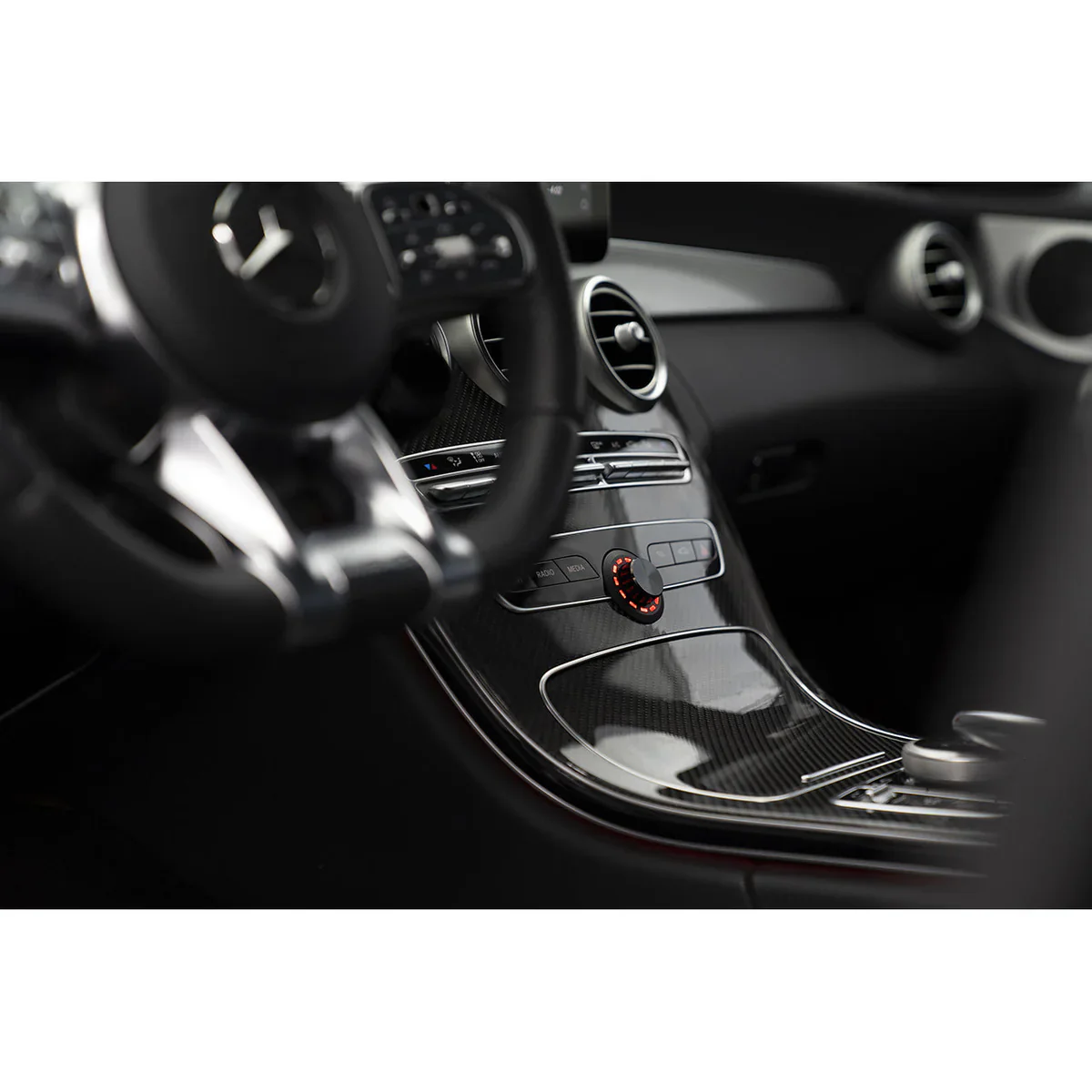

Thanks to its compact, symmetrical design and high-quality materials, the CONDUCTOR combines design and functionality perfectly, blending seamlessly into your vehicle’s interior, looking as if it came with your car from the factory.

Features

• One-Touch Remote Control: Easily control volume, source selection, and DSP setup changes with just one knob.

• Tailor-Made for Your Needs: Optimally adapted for both simple subwoofer remote control or complex system configurations with multiple playback zones.

• All Signal Sources Under Control: Manage all connected signal sources quickly, including smartphone playback with intuitive Bluetooth playback control (requires optional Bluetooth Extension Card).

• Sound Setup Switch: Switch between different optimized sound setups for rock, pop, classical, or absolute pure sound, ensuring optimal sound quality for every music taste.

• Up to 4 Individual Volume Menus: Configure Master, Digital, HEC/AUX, Subwoofer, and Rear Attenuation volume menus individually.

• Volume Range & Steps Selectable: Choose between 60 dB, 24 dB, or 12 dB volume ranges and adjust in 1 dB or 0.5 dB volume steps selectable.

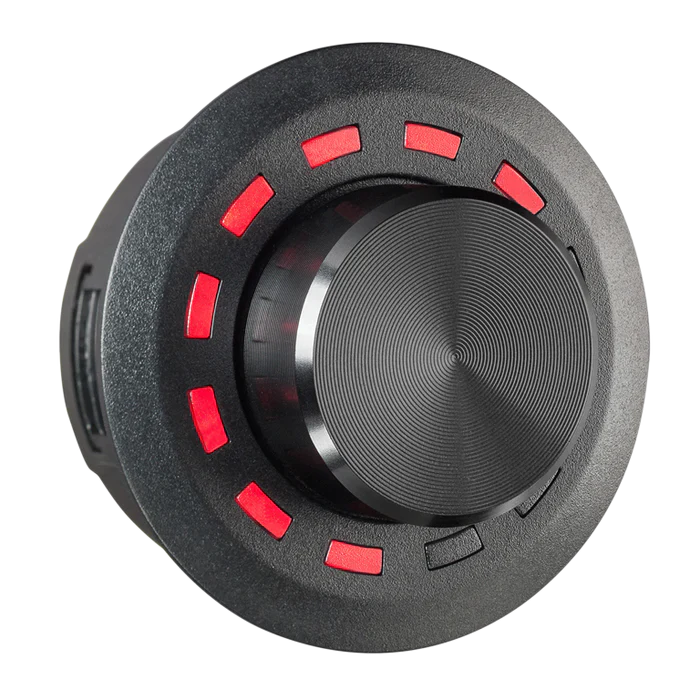

• Customizable RGB LED Feedback: 12 RGB-LEDs provide visual feedback with over 16 million colors, including brightness and automatic dimming functions.

• Easy Installation: Flush mount with a Ø 40 mm hole cut-out and a 5 m cable harness featuring split connector and single connectors. Optional on-dash housing coming soon.

• Full Configuration & Updates: Easily configure and update through the DSP PC-Tool software for maximum flexibility.

Technical Specifications

• Housing: ABS housing with machined aluminum knob

• Hardware: Rotary encoder, 12 x RGB-LEDs, 48 MHz ARM processor

• Connection: Single connector supply via MiniDIN or NanoFit input port

• Cable Length: Total 5 m (4.8 m connection cable + 0.2 m CONDUCTOR cable)

• Dimensions: Ø 46 x 28.7 mm (1.81 x 1.13”)

• Installation Depth: 17 mm (0.67”)

Compatibility

The Helix CONDUCTOR Control Input is compatible with a wide range of DSP products, including but not limited to:

• BRAX DSP

• HELIX DSP ULTRA

• DSP PRO MK3*

• DSP.3S*

• DSP.3

• DSP MINI MK2*

• DSP MINI

• P SIX DSP ULTIMATE*

• V TWELVE DSP MK2*

• V TWELVE DSP

• V EIGHT DSP MK2

• M SIX DSP

• M FOUR DSP

• MATCH UP 10DSP* and variants

• M 5.4DSP*

• M 5DSP MK2

• PP 86DSP MK2*

*Note: The Control Input-to-SCP adaptor supplied with the DSP product is required for connecting the CONDUCTOR. The CONDUCTOR cannot be combined with another control unit.

What's in the Box?

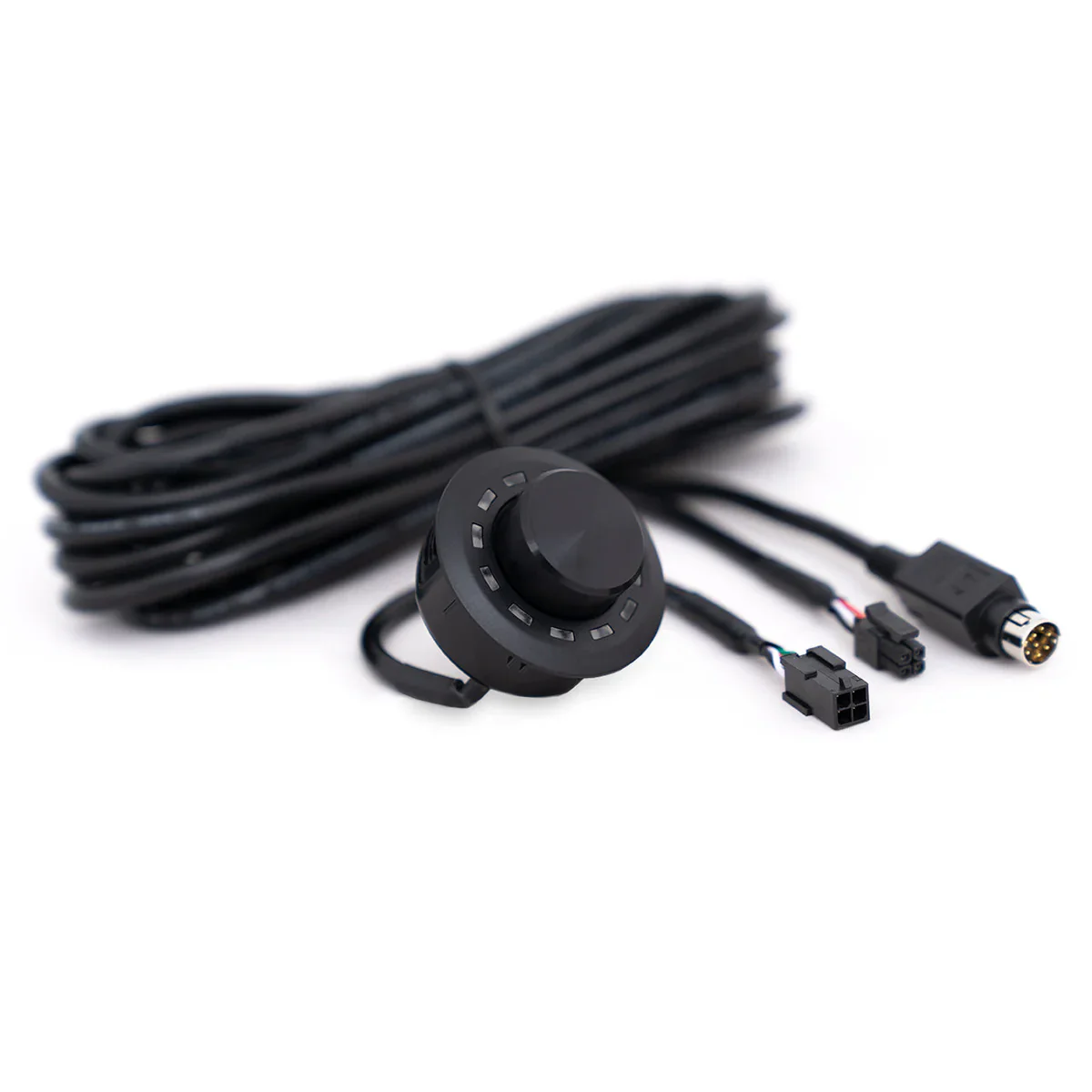

• 1 x Remote control CONDUCTOR

• 1 x 4.80 m connection cable

Upgrade your car audio experience with the Helix CONDUCTOR Control Input — the perfect programmable LED remote control designed for enthusiasts who want intuitive control, seamless integration, and pure, optimized sound quality. Whether you’re managing multiple playback zones or simply adjusting your subwoofer volume, this control unit delivers precision and style in one compact package, fully leveraging the smart control port technology and control input DSP capabilities.
