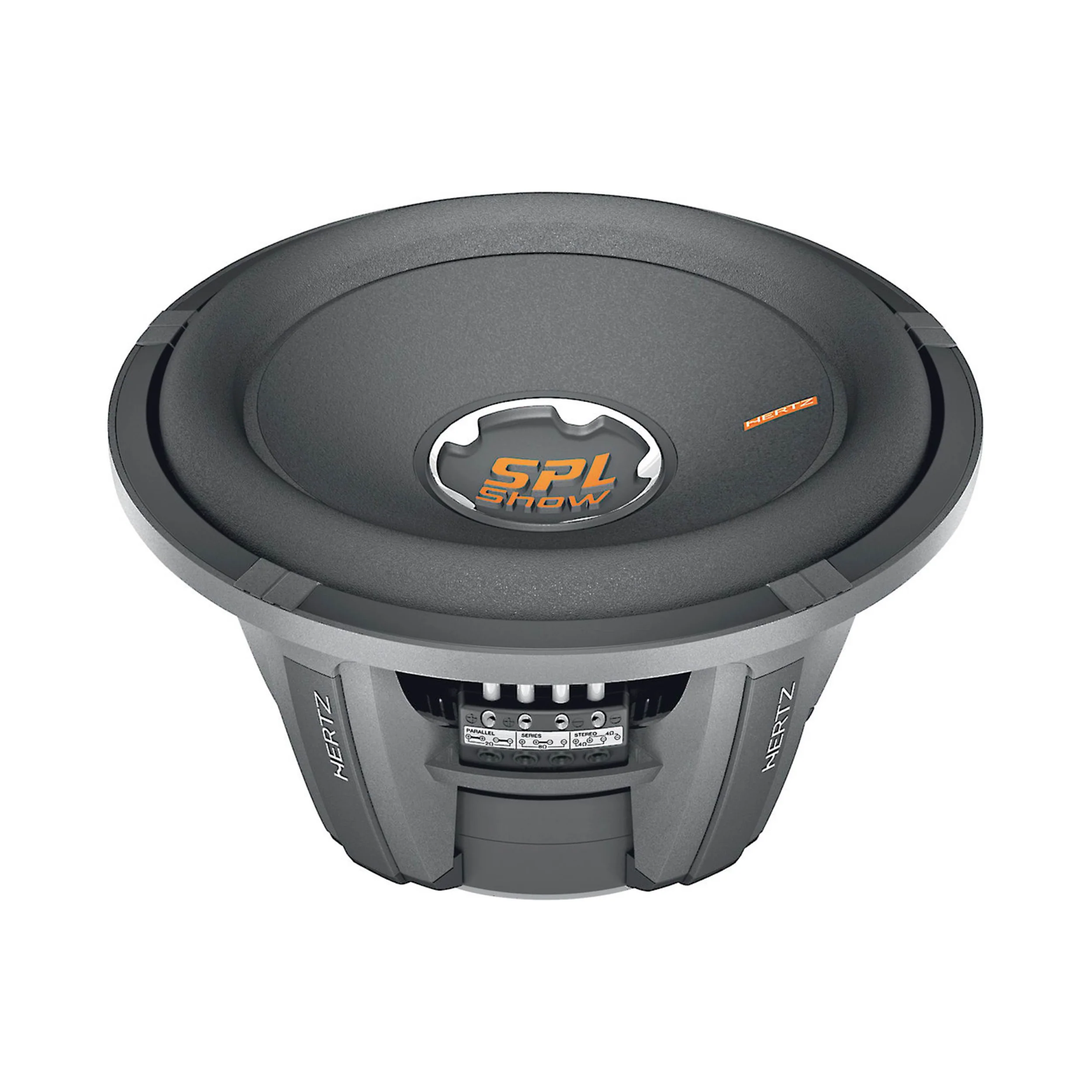

Hertz SX 300D SPL Show Series 12" 3200W Subwoofer
Ideal Solution For Building Mobile Audio Systems with Emphasis Placed On Low-Frequency Power & Impact!
SPL Show 12" Subwoofer
The Hertz SPL Show car audio subwoofers are the ideal solution for building mobile audio systems with emphasis placed on low-frequency power and impact. Featuring a stacked double magnet motor assembly and 2 + 2 Ohm dual voice coil, the three models, SX 250D, SX 300D, and SX 380D differ only in their cone diameter: 250 mm, 300 mm, and 380 mm respectively. The SPL Show moving assembly is designed to ensure long and linear excursion. They feature a dual spider design and an aluminium voice coil wound on a four-layer former. The back-vented spider support decreases the voice coil operating temperature, even during enhanced SPL usage.
Features:
- High magnetic permeability plates provide constant, even flux.
- Large double magnet, for perfect control under high power, very high excursion conditions for high SPL performance.
- Four-layer aluminium voice coil; for unheard-of thermal capability.
- Back plate venting holes, for optimal thermal dissipation.
- Back vented spider support; for perfect symmetry under high excursion while providing increased thermal dissipation.
- High-current, screw terminals, for large gauge wires.
- Tinsel lead wires are integrated into the spider; for maximum reliability and conductivity.
- Double wide-wave, resin-bonded fibre spider; for consistent parameters and reliability.
- High-density foam surround; for linear movement, even under extreme excursion.
- Water-repellent, pressed paper cone.
- Aluminium ring within the pole piece reduces impedance modulation at high excursion.
Specifications:
- Size: 300mm (12")
- Power Handling - Peak: 3200W
- Power Handling - Continuous: 800W
- Impedance: 2 + 2Ω
- Frequency Response: 28 ÷ 700Hz
- Sensitivity: 91dB SPL
- Voice Coil Ø: 65mm (2.3")
- Magnet: Double Magnet, High-Density Flux Ferrite
- Cone/Dome: Pressed Paper
- Weight: 12.00kg
Original: $392.79
-65%$392.79
$137.48
Description
Ideal Solution For Building Mobile Audio Systems with Emphasis Placed On Low-Frequency Power & Impact!
SPL Show 12" Subwoofer
The Hertz SPL Show car audio subwoofers are the ideal solution for building mobile audio systems with emphasis placed on low-frequency power and impact. Featuring a stacked double magnet motor assembly and 2 + 2 Ohm dual voice coil, the three models, SX 250D, SX 300D, and SX 380D differ only in their cone diameter: 250 mm, 300 mm, and 380 mm respectively. The SPL Show moving assembly is designed to ensure long and linear excursion. They feature a dual spider design and an aluminium voice coil wound on a four-layer former. The back-vented spider support decreases the voice coil operating temperature, even during enhanced SPL usage.
Features:
- High magnetic permeability plates provide constant, even flux.
- Large double magnet, for perfect control under high power, very high excursion conditions for high SPL performance.
- Four-layer aluminium voice coil; for unheard-of thermal capability.
- Back plate venting holes, for optimal thermal dissipation.
- Back vented spider support; for perfect symmetry under high excursion while providing increased thermal dissipation.
- High-current, screw terminals, for large gauge wires.
- Tinsel lead wires are integrated into the spider; for maximum reliability and conductivity.
- Double wide-wave, resin-bonded fibre spider; for consistent parameters and reliability.
- High-density foam surround; for linear movement, even under extreme excursion.
- Water-repellent, pressed paper cone.
- Aluminium ring within the pole piece reduces impedance modulation at high excursion.
Specifications:
- Size: 300mm (12")
- Power Handling - Peak: 3200W
- Power Handling - Continuous: 800W
- Impedance: 2 + 2Ω
- Frequency Response: 28 ÷ 700Hz
- Sensitivity: 91dB SPL
- Voice Coil Ø: 65mm (2.3")
- Magnet: Double Magnet, High-Density Flux Ferrite
- Cone/Dome: Pressed Paper
- Weight: 12.00kg
