STEDI LEDST1K-20-20L-YEL ST1K 21.5" E-Mark LED Light Bar | Yellow

The Nitty Gritty.

The Nerdy Stuff

• 20 x 5W OSRAM LEDs
• RFI and EMI suppression circuit. Guaranteed to not interfere with Radio or GPS Equipment
• IP68 - Submersible to 3m
• Environmentally sealed Deutsch DT-2 connectors
• Innovative hooded optics
• Driving Beam E mark compliant beam.

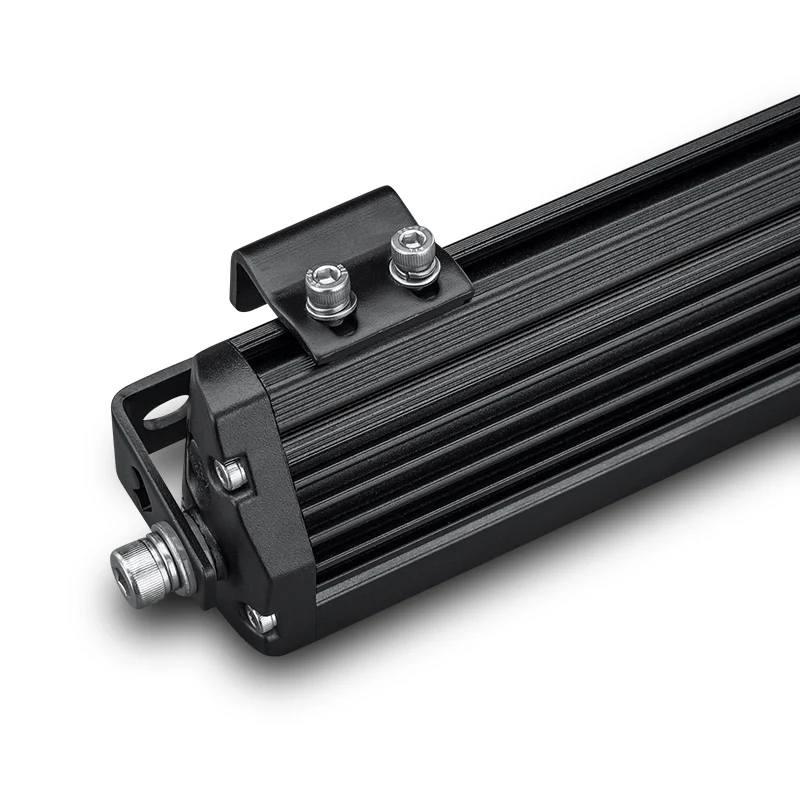

• Heavy Duty Adjustable Bottom Mounts & Side bracket included.
• Reverse Polarity Protected Circuit (RPPC)
• Electronic Thermal Management
• Built-in Voltage Surge Protection

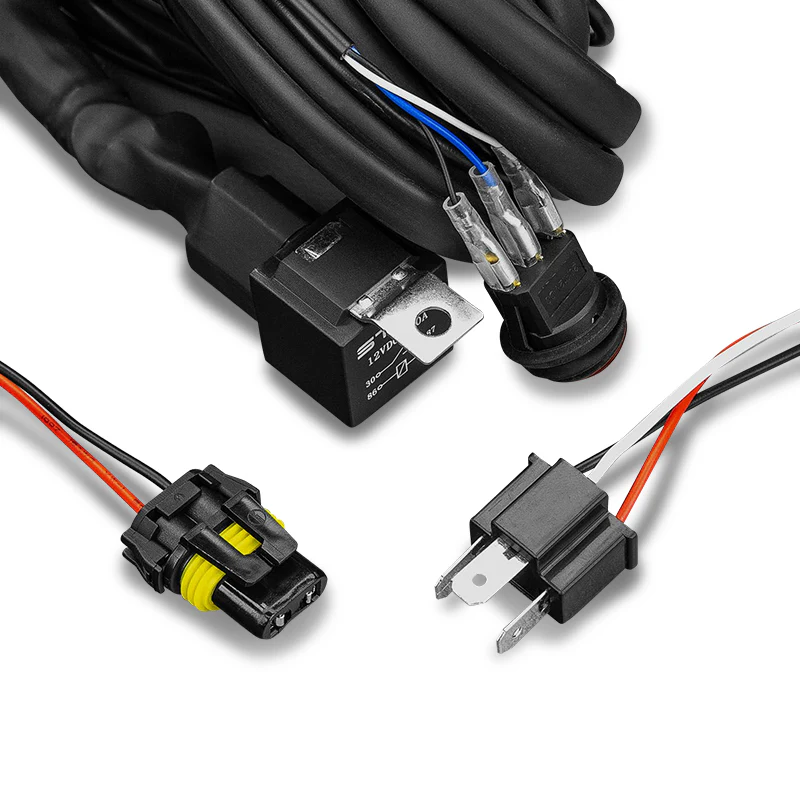

Includes: Our high current Easy-Fit Plug & Play Wiring Harness. (Switch, Fuse, Relay HB3 and H4 high-beam piggy back adaptors)

Certified E-Mark Compliant

Our new ST1K series is ECE approved, making it road-legal in Europe and New Zealand. Featuring our innovative hooded reflector design with rear-facing LEDs enables unprecedented beam control - not possible with more conventional optics. The 20 LED is ideal for stealth installations – think lower grill, behind the upper grille, or the STEDI number plate light mounting bracket.

Bite The Dust

Wide-horizontal beam patterns, coupled with our edge-to-edge yellow bonded lens, ensure maximum visibility across all driving conditions. Peirce through dust and fog like never before, while enjoying a significant reduction in glare and reflection from road signs.

Discover New Horizons.

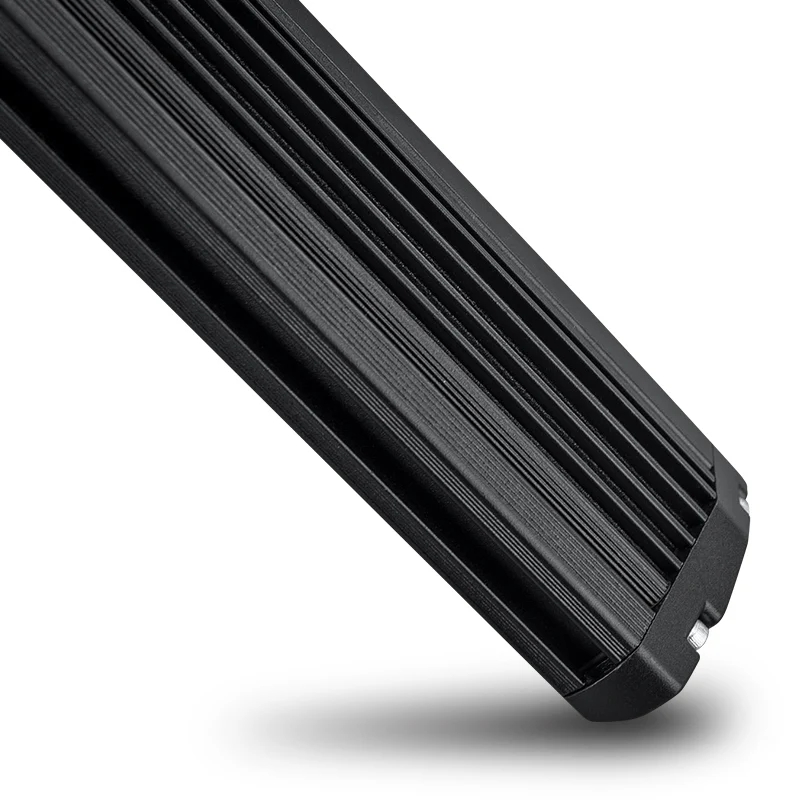

Urban adventure or journey into the wilderness – The ST1K will get you there. The unique geometry of the 6063 aluminium extrusion body measures at only 38mm in height. The ST1K is the first-ever light bar to feature or innovative edge-to-edge bonded lens, adding a new dimension in design. The design adds subtle yet high-end styling to any class of vehicle that needs a high performing stealth driving light.

Dimensions:

Specifications:

• LED Manufacturer: OSRAM
• LED Count: 20
• Voltage: 9V - 32V
• Current Draw (Amperes): 8.0a @13.6v
• Lens Material: Optical Grade, Makrolon
• Raw Lumens: 5,920Lm
• Peak Intensity (Candela): 219,792cd
• Housing Material: A360.0 Cast face plate, extruded Aluminum heat sink
• Lumen Maintenance: 50,000 (LM80)
• Ingress Protection: IP68
• Operating Temp: -40°C~+150°C
• Weight: 1.290kg

What's In The Box:

• ST1K 21.5 Inch LED Light Bar
• Easy Fit High Beam Wiring Harness
• H4 & HB3 adapters to High Beam
• Installation Manual
