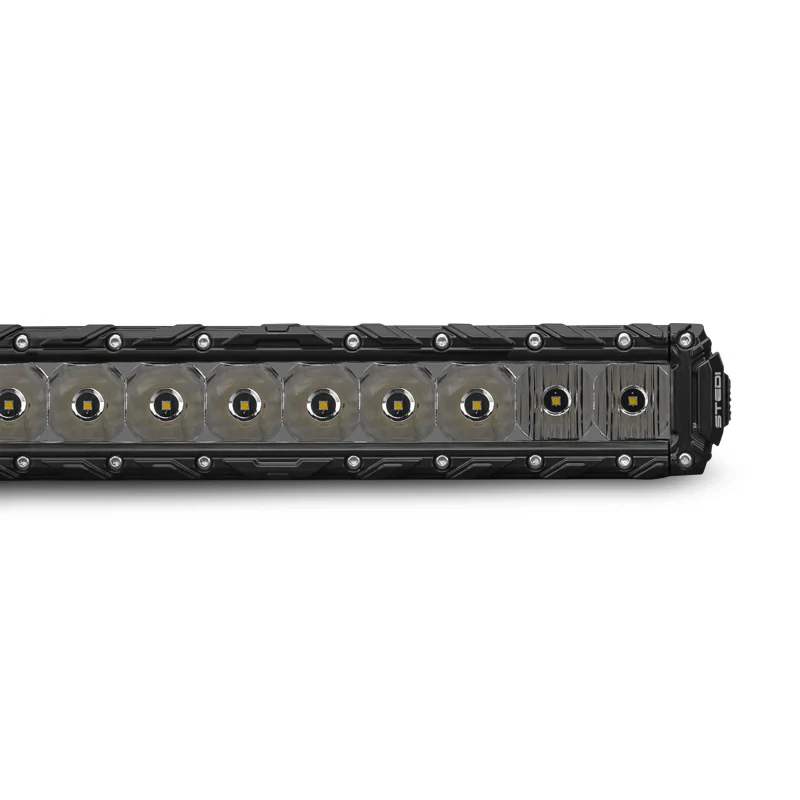

STEDI LEDST3K-30L ST3K 31.5" Low Profile 30 LED Slim Light Bar

Proven to Be a Solid & Durable Upgrade for Your Vehicle!

The Definition Of Calibre
Our STEDI ST3K LED Light is was designed to bring a large amount of light to a small amount of space. With a total height of just 63mm (with the side brackets attached), you will find the ST3K is able to be mounted on your front bar or grill, whilst maintaining the factory look of your vehicle.

Timeless Design
The ST3K 31.5 Inch LED Light Bar utilizes the Pure Drive technology (of Type-X and ST4K fame), to deliver a powerful punch. The ST3K 31.5 Inch LED Light Bar can also be mounted in tight spaces, allowing it to suit a wide and unexpected range of vehicles.

Market Leading Performance

• ST3K-30L Features 30 of OSRAM’s® finest OSLON® LED, Selected for Unrivalled Efficiency
• 6 Flood + 18 Spot + 6 Flood Reflector Distribution Forms a Remarkable Beam that Pushes the Wide Beam out At 50° & Spot Beam at 5.8° All the Way to Staggering 1 Lux @ 601m
• True White 5700K Colour Temperature Offers Stunning Clarity & Definition
• Our Pure-Drive™ Circuit Design Allows 97% of Input Power to Go Directly to LED's

Built To Withstand The Relentless Punishment Of The Deep Australian Outback

• Finished in 100% Polyester UV & Abrasion Resistant Powder Coat Ensures that Our Bars Will Never Discolour
• Pressure Equalization Vent | Protects Against Water Ingress, Dust & Contaminants
• IP68 | Dust & Particle Tight + Water-Proof up To 3 Meters!
• Environmentally Sealed Deutsch DT-2 Connector.
• Protected Against EMC & RFI

Includes our Easy-Fit High Beam Plug and Play Wiring Harness which includes H4 and HB3 Adapters making for an easy connection to high beam. Unlike the copycat harnesses on the market, ours has built-in electronics making our harness compatible with even the most modern and sophisticated wiring systems.

Specifications:

• LED: 30 x Osram Oslon White
• Effective Lumen: 6,150Lm
• Peak Intensity (Candela): 364,800CD
• Operating Voltage: 10-30V DC
• IP Rating: IP68
• Current Draw: 6.5A @ 13.6v
• Colour Temperature (CCT): 5700 Kelvin
• Housing Material: Aluminium Extrusion & Cast
• Lens: GE™ Lexan
• Mounting Bracket: Powder Coated 3mm Stainless Steel
• Bolts & Fittings: 3 Series Stainless Steel
• Beam Type: Flood Spot Combo
• Life Span: 50,000 Hours
• Weight: 2.640
• Operating Environment: -40 - +50° Celsius
• Photometric Data:
  • 10M: 3,612 Lx
  • 50M: 144 Lx
  • 100M: 36 Lx
  • 200M: 9 Lx
  • 601M: 1 Lx

What's Included:

• ST3K 31.5" LED Light Bar
• Stainless Fasteners
• Stainless Steel Side Mounting Brackets
• 12v Quick Fit to High Beam Wiring, Relay, Wiring Kit & On/Off Switch
• H4 & HB3 Adapters Included
• Wiring Instructions
